PAX IM30

Category:
  • EDC
summary:
  • The game changer self-service device
Share:

Product Description

PAX IM30

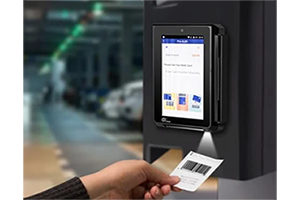

The IM30 is an all-in-one unattended payment terminal that is designed to handle all payment methods including EMV®, MSR, and NFC contactless, QR code, as well as NFC-enabled mobile wallets. Built to last in any environment, it offers added conveniences and security like push-to-talk, picture surveillance, and automated customer identification. The IM30 performs best in all kinds of indoor and outdoor self-service environments with high transaction volumes, such as vending machines, ticketing machines, on-street and off-street parking, petrol forecourts, car-washes and store kiosks, self-service checkouts, and more.




  • Android 7.1
  • 4G + WiFi + Bluetooth + IP or WiFi + Bluetooth + IP
  • NFC contactless + Magstripe + Smart Card Reader
  • 5-inch TFT WXGA 720 x 1280Px Colour Touchscreen
  • PIN on Glass



Product Features

  • CPUCortex A53
  • OSPayDroid Powered by Android 7.1
  • Memory8GB Flash + 1GB LPDDR3 RAM | Optional: 2GB LPDDR3 RAM
  • Display5'' TFT WXGA 720 x 1280
  • Camera2MP Front-Facing
  • Audio1 Speaker
  • Communication4G | Ethernet | WiFi (Dual band) | Bluetooth 5.0
  • SIM Slot1 SIM | 2 SAM (optional 4)
  • Interface2 RS232 | 1 USB Host | 1 USB OTG | 1 LAN | 1 MDB Slave | 1 HDMI
  • Power12V - 48V DC via MDB Slave | 12V - 48V DC via RS232 | 19V - 30V AC via Executive
  • Physical105 x 146 x 57 mm | 486g
